How to Install The Tanabe Front Sway Bar on the Subaru BRZ

Your first step for this write up is to safely get the vehicle up in the air. Either by a floor jack and jack stands or a lift.

Then with a 10 mm Socket or Wrench, start removing the vehicle under trays.

Once under trays are removed, disconnect the end links from the sway bar using a 17mm wrench.

If the end links are seized on the sway bar, you can use a mallet to tap on the head of the end link to get it out of the sway bar.

CAUTION: Do not use a metal hammer, as you DO NOT want to mushroom the head of the end link.

Next remove the 3 plastic clips securing the splash shield located in the wheel well attached to the sway bar brackets.

Here we used the pick in order to remove the plastic clips. If you live in cold weather areas make sure not to break these or order extra clips just in case.

Once you have removed the plastic clips securing the splash shields remove the two brackets securing the sway bar to the front sub-frame and the chassis.

There should be bolts visible at both the ends of this bracket.

After the lower most bolts are removed from the Sway Bar supporting brackets, one can easily pull the sway bar assembly out.

Once out, you can place the sway bar assembly on the ground. Using a 14 mm socket, remove the top-side bolt found in the pair of brackets securing the u-shaped bracket to the sway bar.

Using a 12 mm socket, remove the nut found on the bottom-side of the u-shaped bracket, also securing the sway bar to the Chassis/Sway Bar support bracket

Once the two bolts and nuts are removed from the support brackets, you will have succeeded in removing the Factory Front Sway Bars on the Subaru BRZ

The image here shows just how much the bar weighs. You can use this measurement to evaluate future bars you might like to swap in or out. The total weight for the factory bar is 6.10 lbs.

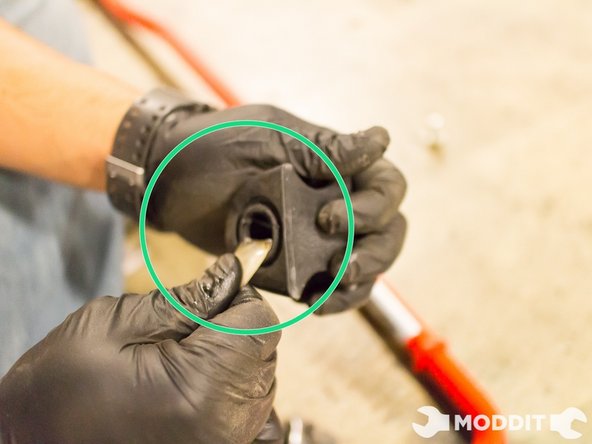

After once has removed the stock Front Sway Bar, our first step is to lubricate the included bushings with appropriate grease.

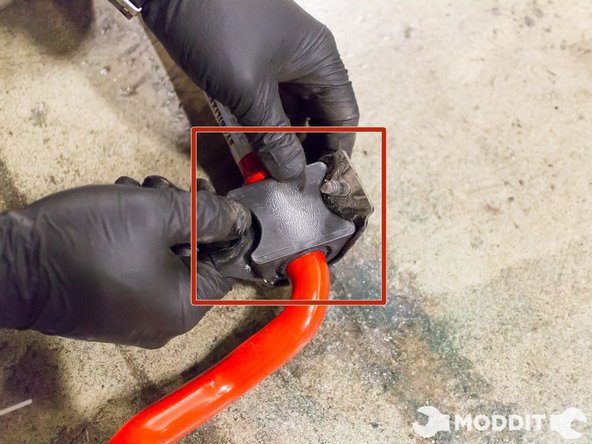

After a healthy lubrication, install the bushings on the bar.

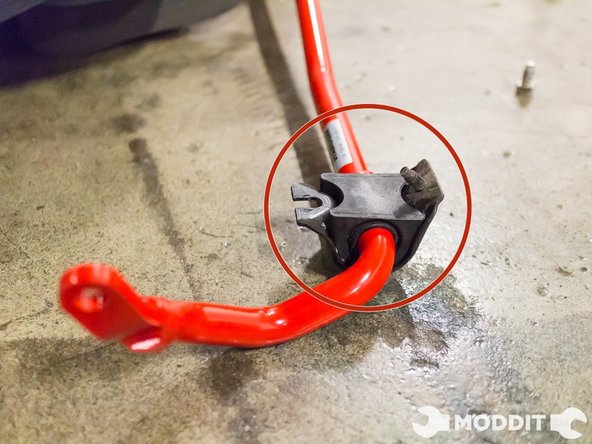

then place the brackets on the sway bar D-bushings as such

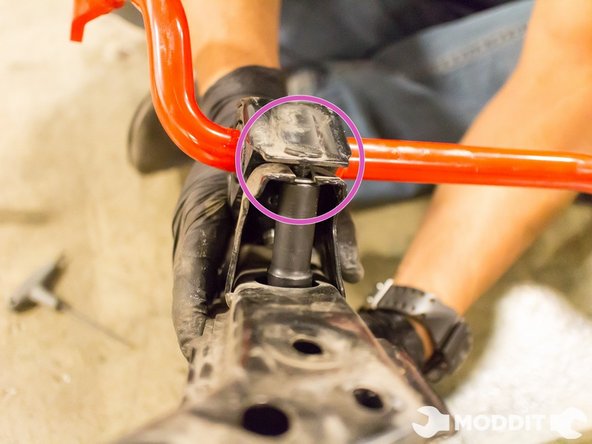

Secure the D-bushing bracket on the front sway bar chassis mounting bracket.

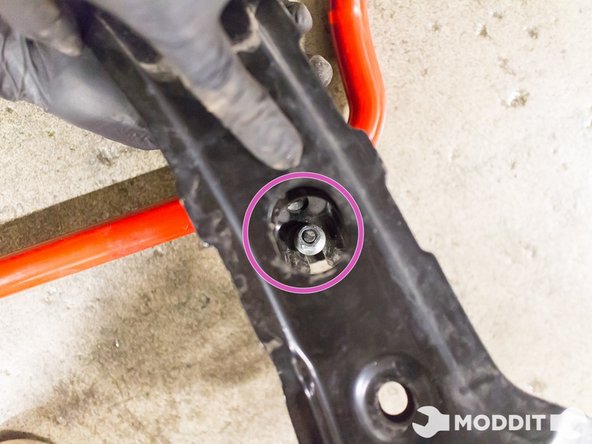

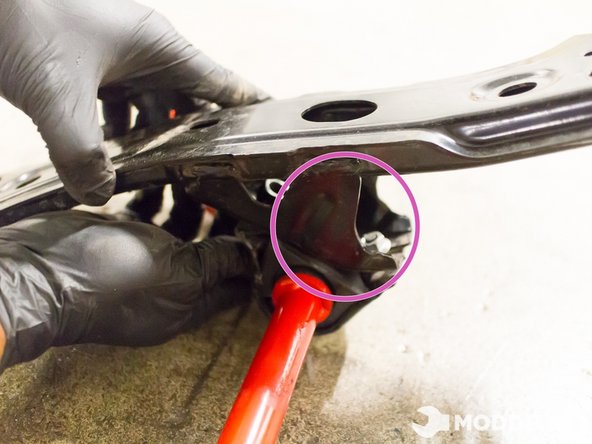

Remember that one is a bolt and the other is a nut, so be prepared with the right tools.

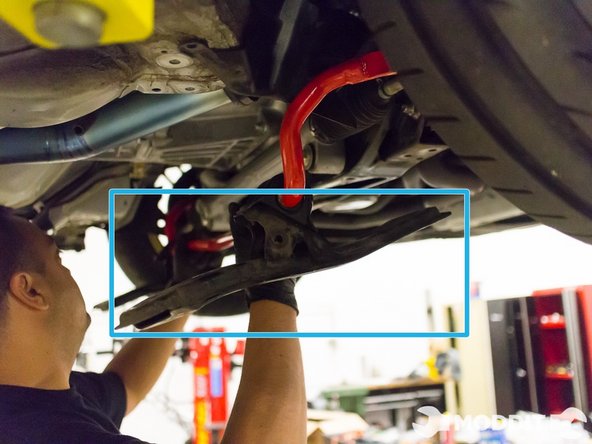

After the sub-frame mounts are bolted up, bring up the sway bar up to the mounting point in the car.

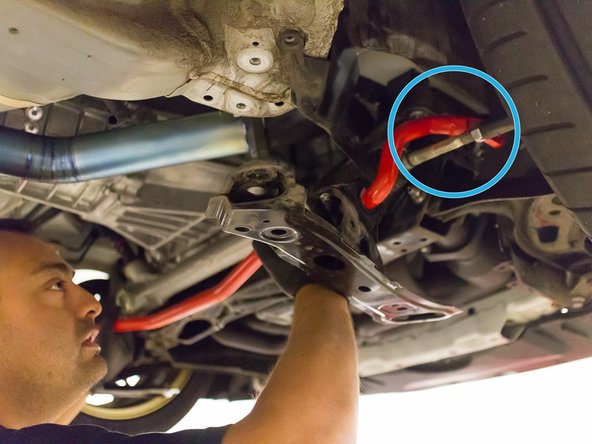

When installing the sway bar, hook the sway bar ends over the tie rods and attach the end link to hold the bar.

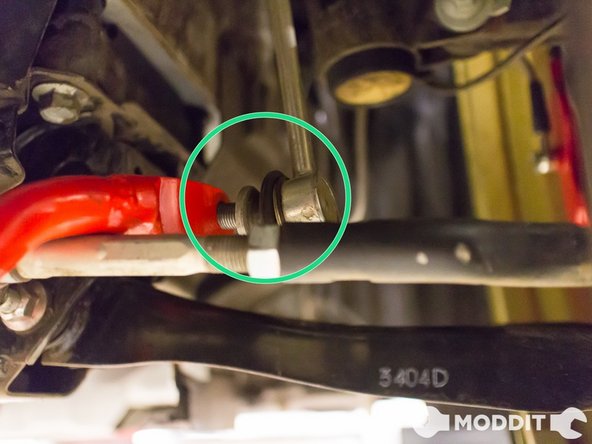

It might be a good idea to have a person help you hold up the bar while you bolt on the next items.

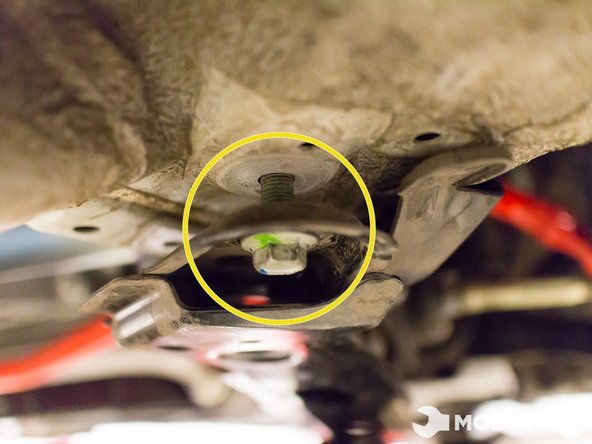

Bring the sway bar mounting bracket up to the chassis and secure but do not tighten the unit.

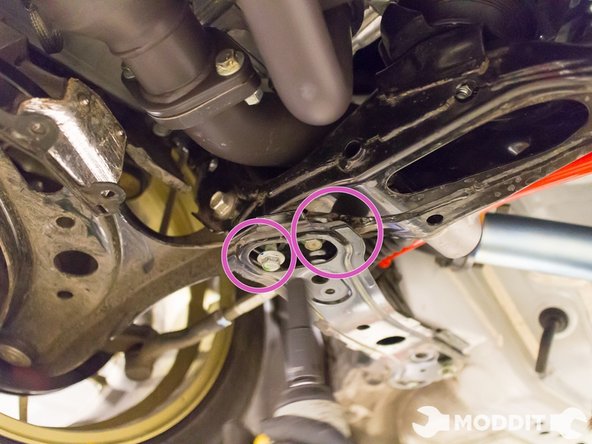

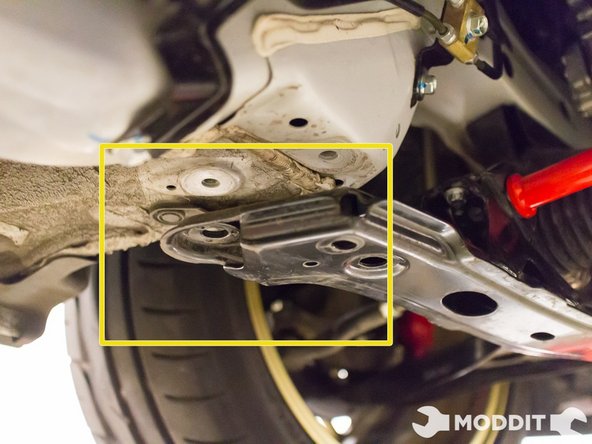

Beginning with the front-most bolt, secure the sub-frame mounting bracket to the actual front sub-frame.

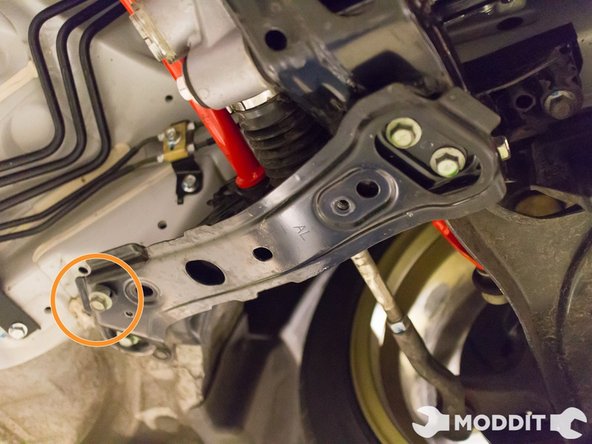

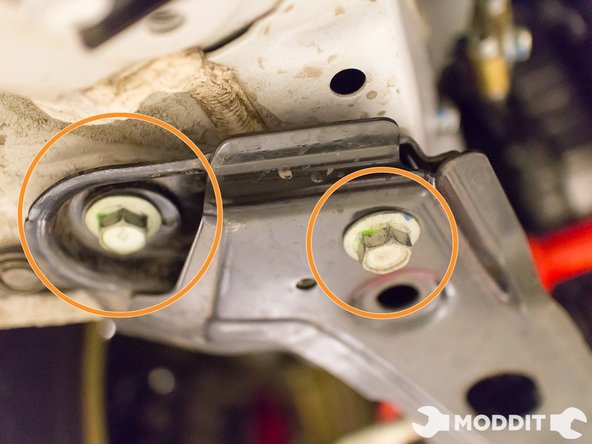

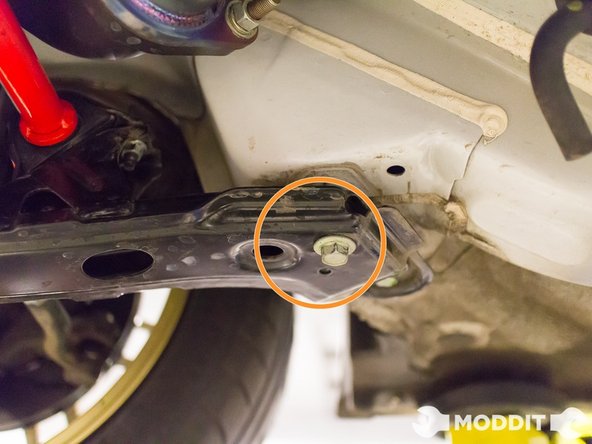

Follow the previous step by securing the rearmost bolts next.

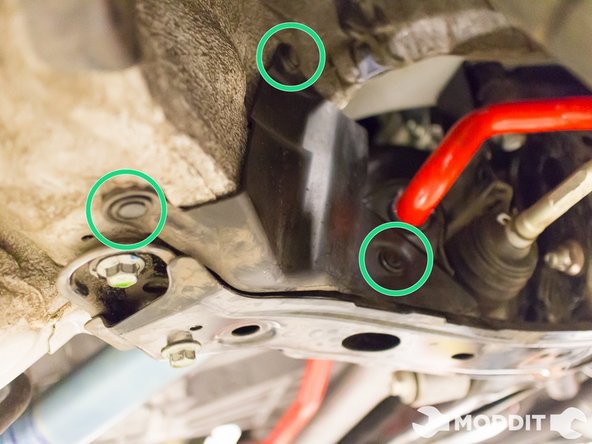

After the sway bar brace is buttoned up, go ahead and reattach the splash shield on both sides

In this image you can get a good idea of where most of the plastic clips will go.

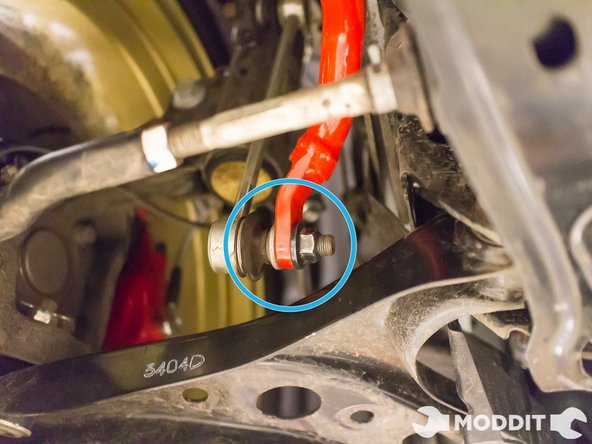

Hook the end links back onto the control arm. Torque the nuts down to spec, but make sure the stud does not spin while turning the nut.

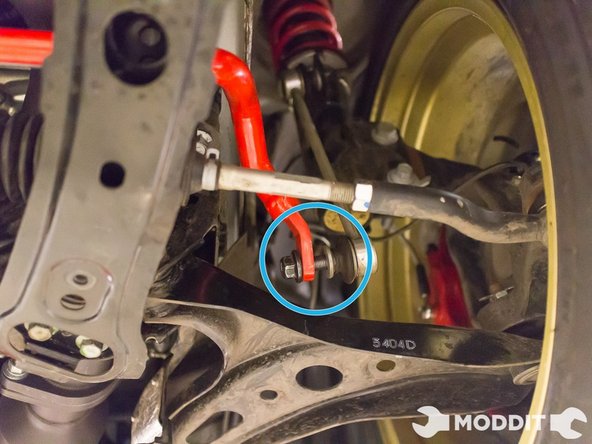

Once the end links are torqued, go ahead and start installing the undertray.

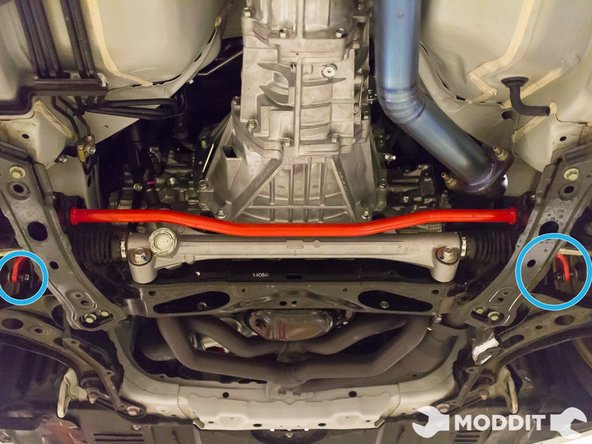

Please refer to the start of the guide to install the under tray or simply for more information.

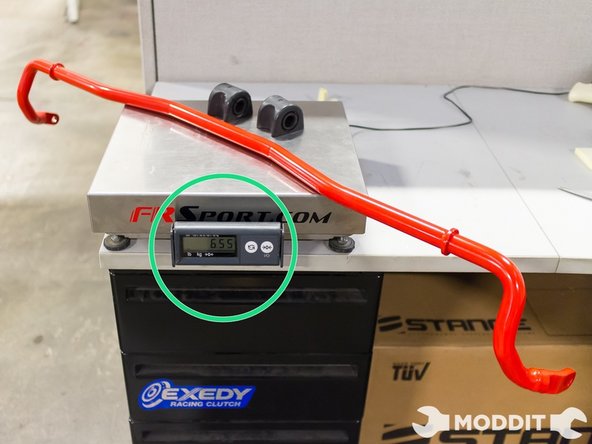

Although the Tanabe Sway bar is about .5 lbs heavier than the OEM Sway bar, the benefits of upgrading the bar outweigh the small weight difference.
