How to Replace OEM Brake Light Stopper

Written By: Dung Nguyen (and one other contributor)
  • Comments: 1
  • Favorites: 0
  • Completions: 1

Difficulty

Very easy

Steps

5

Time Required

00:10:00 - 00:15:00

Sections

1

Flags

0

Introduction

When your OEM Brake Pedal / Brake Light stopper disintegrates after continued use it tends to leave the brake lights on in Nissan 240SX vehicles. usually when this part goes bad its not a big deal, but in our 240SX vehicles it completely kills the battery if not caught. This guide will quickly detail how to replace the stopper.

Tools

No tools specified.

Parts

  1. One of the most annoying things that can happen to a 240SX driver is to have their Brake Light Stopper go out

    • One of the most annoying things that can happen to a 240SX driver is to have their Brake Light Stopper go out

    • As this picture shows, when it goes out it maintains the brake lights on and if not caught can completely drain your battery. The keys are out of the ignition and yet the lightsremain on

    Edit

  2. Over time the stopper becomes extremely brittle and stiff. The continuous exposure to the force applied by the light sensor is enough to break it over time after it has become brittle.

    • Over time the stopper becomes extremely brittle and stiff. The continuous exposure to the force applied by the light sensor is enough to break it over time after it has become brittle.

    Edit

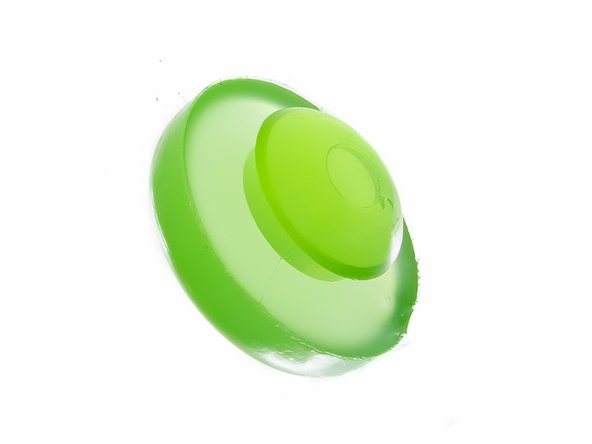

  3. This is what a new brake light stopper looks like. We are not 100% if they have changed the design of these but as you can see it looks a lot softer than the previous image.

    • This is what a new brake light stopper looks like. We are not 100% if they have changed the design of these but as you can see it looks a lot softer than the previous image.

    Edit

  4. Here is the exact location of the stopper. Its located above the steering column bracket. The empty hole you see is where the rubber stopper is inserted in order to push on the sensor for the brake lights to shut off.

    • Here is the exact location of the stopper. Its located above the steering column bracket. The empty hole you see is where the rubber stopper is inserted in order to push on the sensor for the brake lights to shut off.

    • Press on the brake to create space here and insert the stopper. It just has to go on enough to give you time to pull the brake up. This motion will then fully insert the rubber stopper.

    Edit

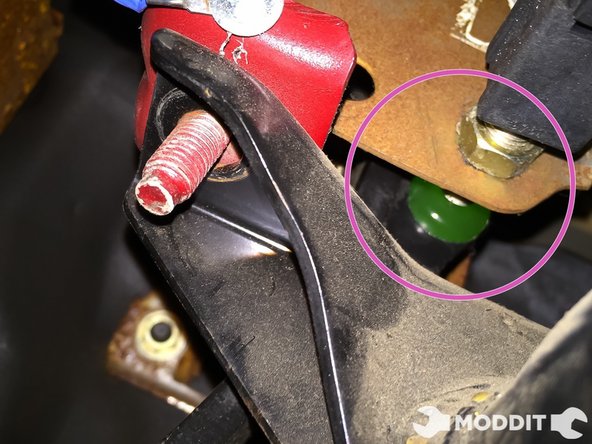

  5. Once installed this is how that same area should look like. When un-pressed the stopper should be pressing on the sensor and thus shutting off your tail lights.

    • Once installed this is how that same area should look like. When un-pressed the stopper should be pressing on the sensor and thus shutting off your tail lights.

    • And that's how one fixes the continuously on Tail Light problem.

    Edit
Finish Line

One other person completed this guide.

Author

with 1 other contributor

Dung Nguyen

Member since: 03/27/2013

842 Reputation

49 Guides authored
